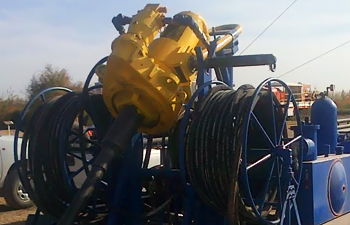

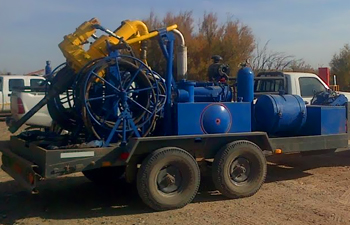

POWER SWIVEL

Features in brief:

Maximum working pressure ensured by a multi-ring, pressure sealing, V-Type adjustable packing.

Interior design maintains all bearings and gears under a flood of oil.

Stability and durability ensured by spherical roller bearings, main bearing and radial lower bearing.

A high-pressure gear motor drives rotating parts through a single spur gear and pinion setup.

Two extensions of the bail pins are provided for improved torque arm adjustment.

Swivel and drive easy to maintain. No special tools required.

Specifications:

Static Hook Capacity: 85 tons.

Dynamic Hook Capacity: 55 tons @ 100 R.P.M.

Spindle Connection: 3 " API LE (RH) PIN.

Spindle bore: 2 " ID.

Gooseneck Connection: 3" API Line Pipe Box.

Maximum Working Pressure : 3,000 PSI.

Washpipe Packing: Multi-Ring, Pressure Sealing.

Lubrication: Oil Bath.

Motor fluid: One gear type, 3,000 PSI continuous working pressure, 10% intermittent duty pressure to 3,500 PSI with motor speeds.

Torque arms: Two-Extension of bail pins.

Gear ratio: Single reduction of 3.62:1 with single spur gear and pinion setup.

Hydraulic connections: (quick disconnects optional) Pressure Port 1 5/16” 12 UNC‑3B Sbr.

Performance:

Rated Continuous Flow & Pressure: 45 GPM @ 3,000 PSI.

Maximum Speed @ Rated Flow & Pressure: To 190 RPM.

Maximum Torque @ Rated Flow & Pressure: 5,249 lbs (Approx. 2,380 kg).
